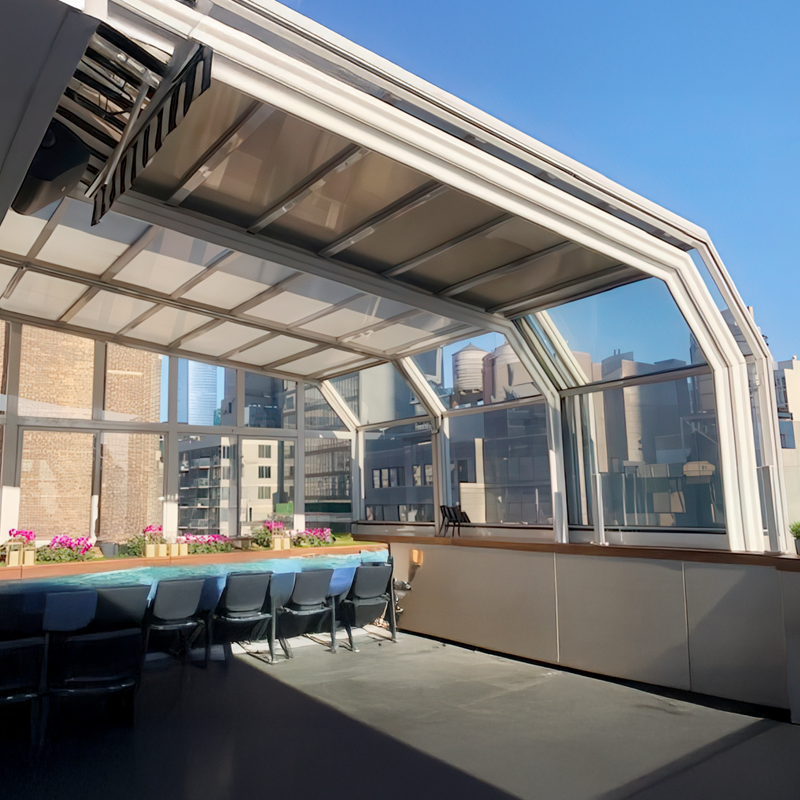

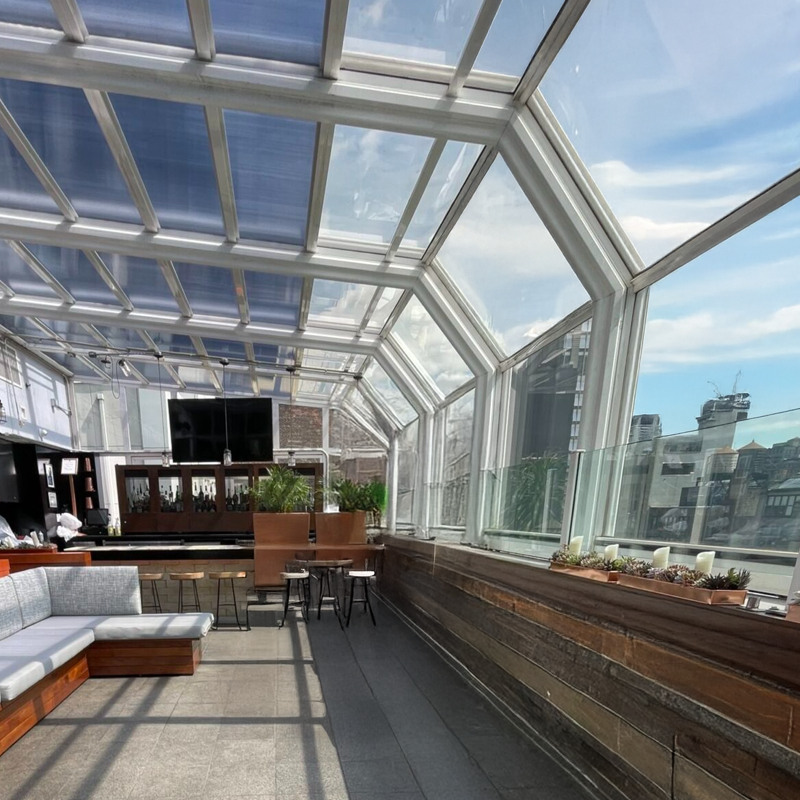

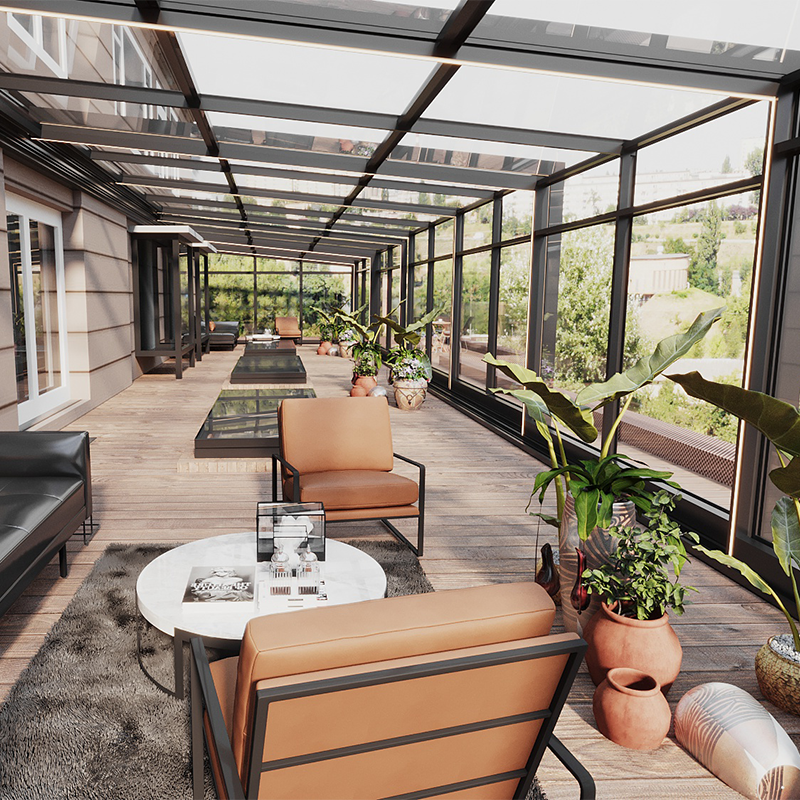

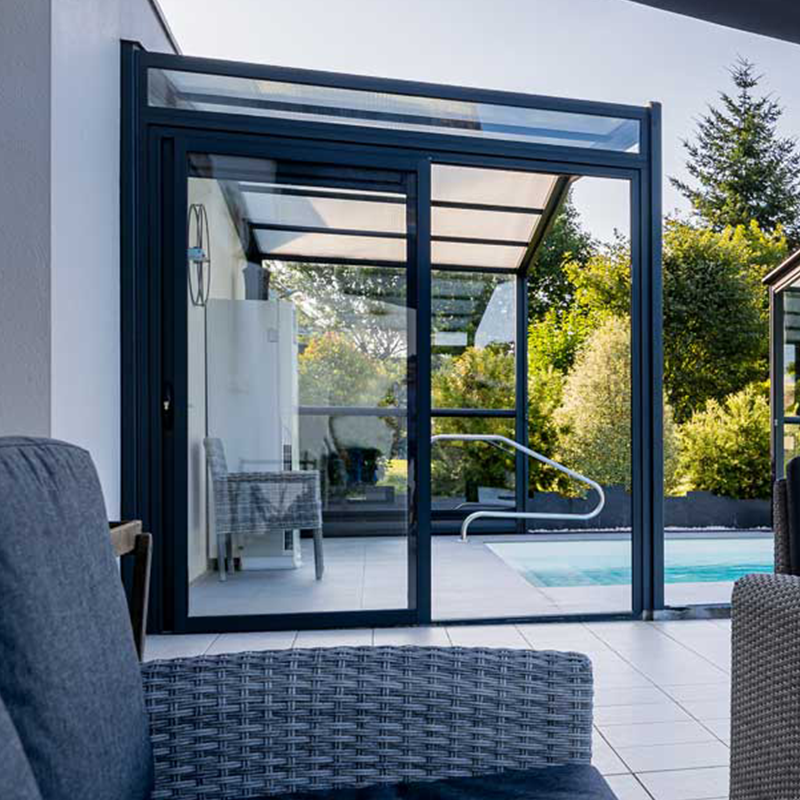

Courtyard retractable sunroom S180
Designed & Manufactured by Archi Glass.
Our Skylights are designed to maximise natural light and illuminate internal spaces.
Combining outstanding technical perfonmance, minimalist design, high quality materials
| Product information | |
|---|---|
| OPENING METHOD | Electric translation |
| SURFACE TREATMENT | Electrostatic powder spraying |
| PROFILE THICKNESS | The average thickness of the profiles is 4.0 mm |
| Profile size 180 × 105 mm | |
| CUSTOMIZATION RANGE | Width ≤ 8000 mm |
| Length ≤ 12000 mm | |
Intelligent Control
```
```
Standard Configuration
A: Standard remote control, open and close the skylight
B: Smartphone Integration, skylight opening percentage, information reminder
Optional
C: Combined multi-function control, Can control up to five combinations
D: Standard remote control, Open and close the skylight
E: Solar wireless rain sensor, Automatically closes the skylight when it senses rain
F: 11-in-1 air detector, Detects formaldehyde, PM2.5/10, carbon dioxide, temperature and humidity, etc. Detects 11 functions

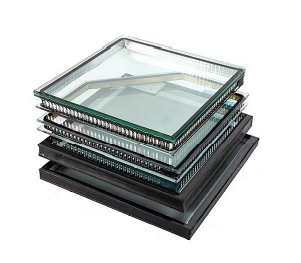

Glazing
Standard Configuration
one: Top 5G + 27AH + 5G
two: Elevation 5G + 27AH + 5G
Optional
three: Top 5G + 0.76PVB + 5G
four: Top 5G + 24AH + 5G + 0.76PVB + 5G
five: Elevation 5G + 0.76PVB + 5G
six: Elevation 5G + 22AH + 5G + 0.76PVB + 5G
Solid Board (Optional)
Thickness: 4mm
Thickness: 5mm
Thickness: 6mm
