Electric Hung Roof Windows: Pitched, Openable Skylights & Top Opening Rooflights
Designed & Manufactured by Archi Glass. Our Skylights are designed to maximise natural light and illuminate internal spaces. Combining outstanding technical perfonmance, minimalist design, high quality materials
Product Description
★ Quick assembly
Quick & Easy installation
Quick & Easy installation
★ Weather Tested
Industry lcading weather testing
Industry lcading weather testing
★ Manufactured by Archi Glass
Deal directly with Archi Glass
Deal directly with Archi Glass
★ Fully Customisable
Any size & specification
Any size & specification
★ High Performance Glazing
Industry lcading weather testing
Industry lcading weather testing

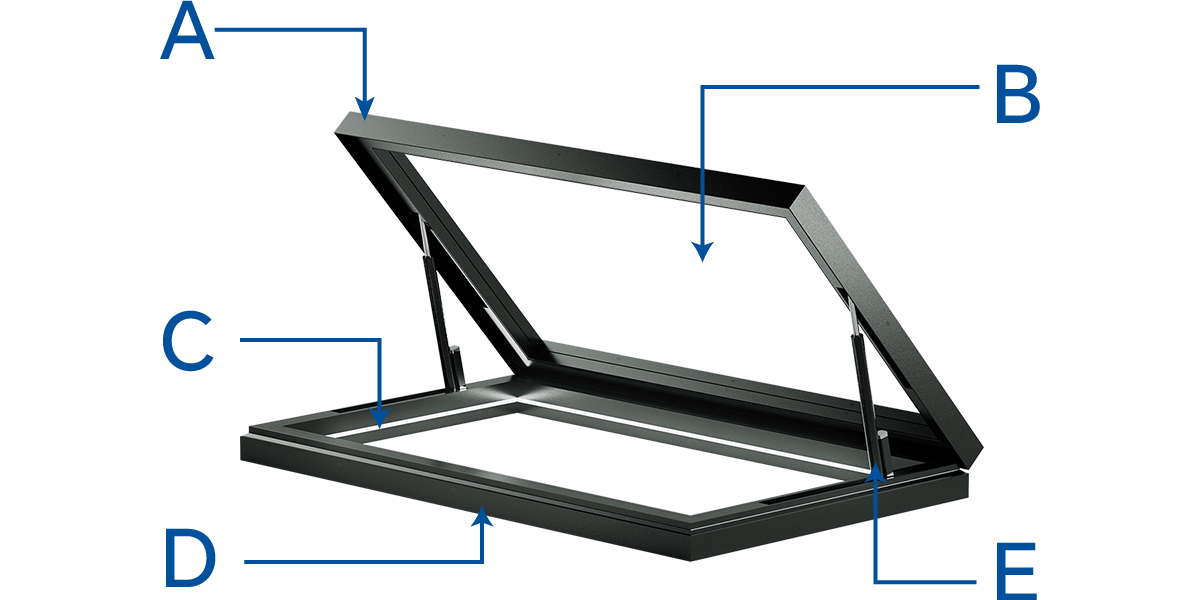

Detail Display
A : Insulated bridgebroken aluminum alloy fan
B : Optional glass
C : LED strip light
D : Insulated bridge aluminum alloy frame
E : Motor
B : Optional glass
C : LED strip light
D : Insulated bridge aluminum alloy frame
E : Motor
| Product information | |
|---|---|
| OPENING METHOD | Motorized Out-Swing |
| SURFACE TREATMENT | PVDF Powder Coated, as per Qualicoat Grade 3/AAMA2605 |
| PROFILE THICKNESS | 3.5mm on Avarage |
| SIZE LIMITS，ONE PANEL | Width 4000mm Length 650-4000mm |
Intelligent control
standard configuration
A：Standard remote control ，open and close the skylight
B：smartphomeIntegration，Skylight opening percentage, Information reminder
B：smartphomeIntegration，Skylight opening percentage, Information reminder
Optional
C：Combined multi-function control
- Can control up to five combinations
- The first smart panel in the skylight industry
- Real-time status monitoring
- Automatically closes the skylight when it senses rain
- carbon dioxide, temperature and humidity, etc.Detects 11 functions
Glazing
standard configuration
one：5mm HS Clear + 27mm AS + 5mm HS Clear
Optional
two：5mm HS Clear + 0.76mm PVB + 5mm HS Clear
three：5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Clear
three：5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Clear
