Top Hung Skylight WT-DR42
Our Skylights are designed to maximise natural light and illuminate internal spaces.
Combining outstanding technical perfonmance, minimalist design, high quality materials
Product Description
Quick assembly Quick & Easy installation
Manufactured by Archi Glass Deal directly with Archi Glass
High Performance Glazing Industry lcading weather testing
Weather Tested Industry lcading weather testing
Fully Customisable Any size & specification

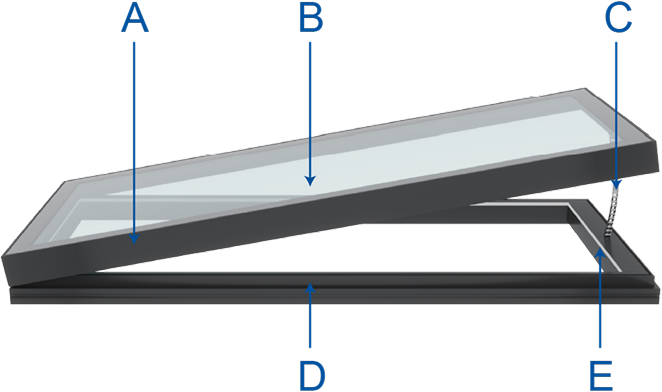

Detail Display
A : Movable frame
B : Optional glass
C : Chain motor
D : Fixed panel
E : LED strip light
| Product information | |
|---|---|
| OPENING METHOD | Motorized Out-Swing |
| SURFACE TREATMENT | PVDF Powder Coated as per Qualicoat Grade 3/AAMA2605 |
| PROFILE THICKNESS | 2.5mm on Avarage |
| SIZE LIMITS, ONE PANEL | Width 700-4000mm Length 400-2000mm |
Intelligent control
standard configuration
A：Standard remote control ，open and close the skylight
B：smartphomeIntegration，Skylight opening percentage, Information reminder
B：smartphomeIntegration，Skylight opening percentage, Information reminder
Optional
C：Combined multi-function control
- Can control up to five combinations
- The first smart panel in the skylight industry
- Real-time status monitoring
- Automatically closes the skylight when it senses rain
- carbon dioxide, temperature and humidity, etc.Detects 11 functions

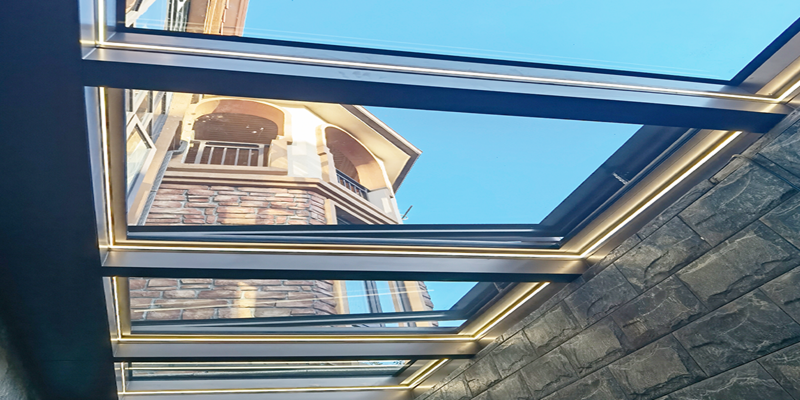

Glazing
standard configuration
one：5mm HS Clear + 27mm AS + 5mm HS Clear
Optional
two：5mm HS Clear + 0.76mm PVB + 5mm HS Clear
three：5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Cleal
three：5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Cleal
COLOR SELECTION
Black
Brown Coffee
Coffee
Light Black
Light Gold
Light Silver
Silver
White
