Sliding Skylight WT-S150

Designed & Manufactured by Archi Glass.
Our Skylights are designed to maximise natural light and illuminate internal spaces.
Combining outstanding technical perfonmance, minimalist design, high quality materials

Share :

Product Description
★  Quick assembly
   Quick & Easy installation
★ Weather Tested
   Industry lcading weather testing
★ Manufactured by Archi Glass
   Deal directly with Archi Glass
★ Fully Customisable
   Any size & specification
★ High Performance Glazing
   Industry lcading weather testing
★ Durable Materials
   Frames are constructed from powder-coated aluminum with PVDF surface treatment, ensuring long-lasting performance and weather resistance.

Large Motorized Sliding Skylight Key Feature

If you are looking for a way to bring natural light, ventilation, and a modern aesthetic to your commercial building, a large motorized sliding skylight could be the perfect solution. Designed for atriums, office spaces, shopping centers, and public buildings, our skylights provide smooth, reliable operation while transforming your indoor spaces with daylight.

Transform Your Space with Motorized Sliding Skylights

A commercial sliding roof window lets you combine natural lighting with effortless ventilation. With our motorized system, you can open or close the skylight at the touch of a button, offering convenience and flexibility for large-scale commercial environments. Imagine bright, airy interiors that enhance the comfort and productivity of your employees or visitors.

Applications

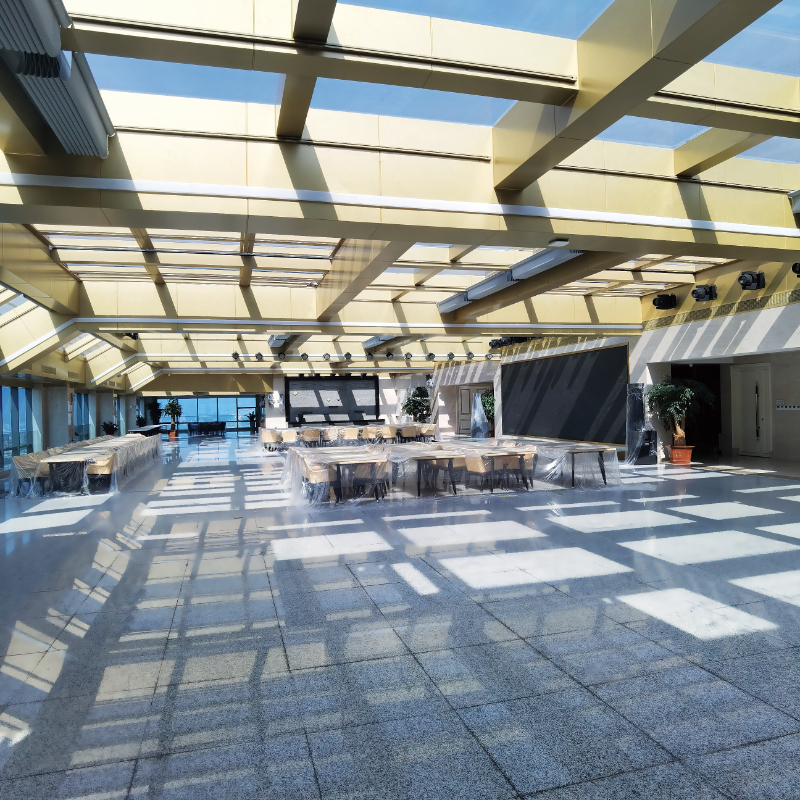

  • Office Buildings & Atriums – Create bright, welcoming environments that enhance comfort and productivity.
  • Shopping Malls & Retail Spaces – Highlight architectural features while allowing natural light into high-traffic areas.
  • Public Buildings & Museums – Offer ventilation and daylight without compromising on design or safety.

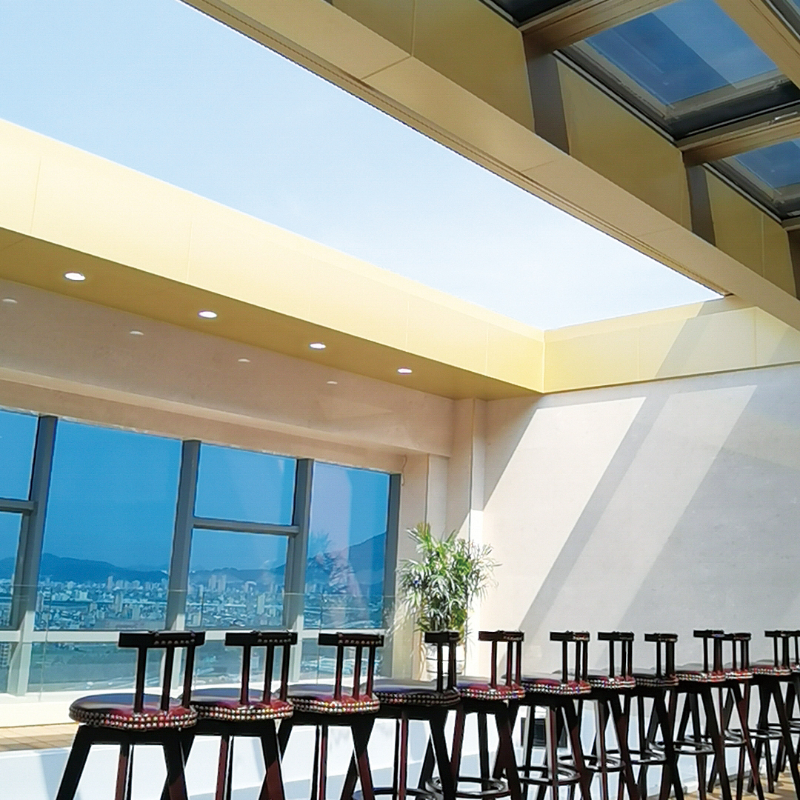

  • Hospitality & Restaurants – Make terraces, dining areas, and indoor courtyards more appealing with controlled light and fresh air.

Why Choose Our Large Motorized Sliding Skylights?

  • Proven Experience – Decades of expertise in designing and manufacturing commercial skylights.
  • Custom Solutions – Every skylight is tailored to your project’s unique dimensions and aesthetic requirements.
  • Quality Assurance – Stringent quality control, certified materials, and extensive testing at every stage.
  • End-to-End Support – From design consultation to installation and after-sales service, we are with you every step of the way.

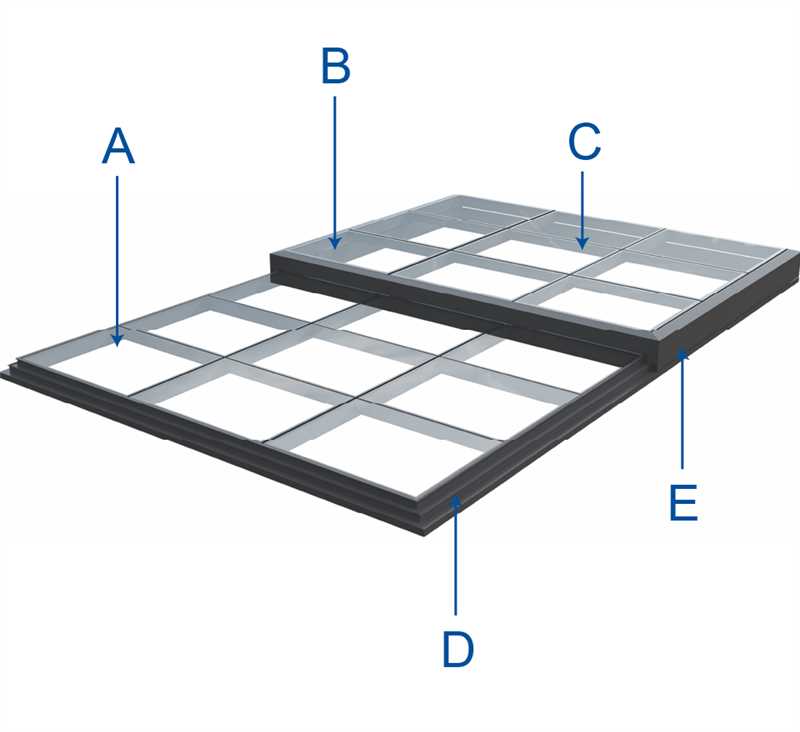

Detail Display
A : Fixed fan
B : Movable fan
C : Optional glass
D : Track
E : Motor
Product Specification
OPENING METHOD Electric Sliding
SURFACE TREATMENT PVDF Powder Coated, as per Qualicoat Grade 3/AAMA2605
SIZE LIMITS,ONE PANEL Up to 36m² in Area
Width 600~6000mm
Length 600-6000mm
Intelligent control
standard configuration
A:Standard remote control ,open and close the skylight
B:smartphomeIntegration,Skylight opening percentage
    Information reminder
Optional
C:Combined multi-function control
  • Can control up to five combinations
D:Smart remote control
  • Open and close the shylight
E:Solar wireless rain sensor
  • Automatically closes the skylight when it senses rain
F:11-in-1 air detector,Detects formaldehyde, PM2.5/10
  • carbon dioxide, temperature and humidity, etc.Detects 11 functions
Glazing
standard configuration
one:5mm HS Clear + 27mm AS + 5mm HS Clear
Optional
two:8mm HS Clear + 1.52mm PVB + 8mm HS Clear
three:5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Cleal
