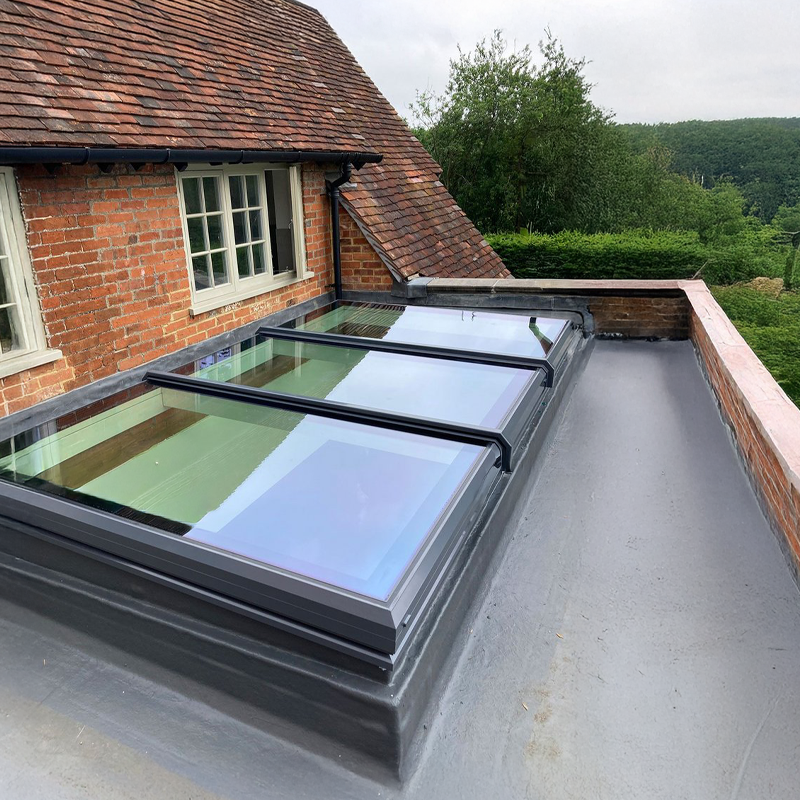

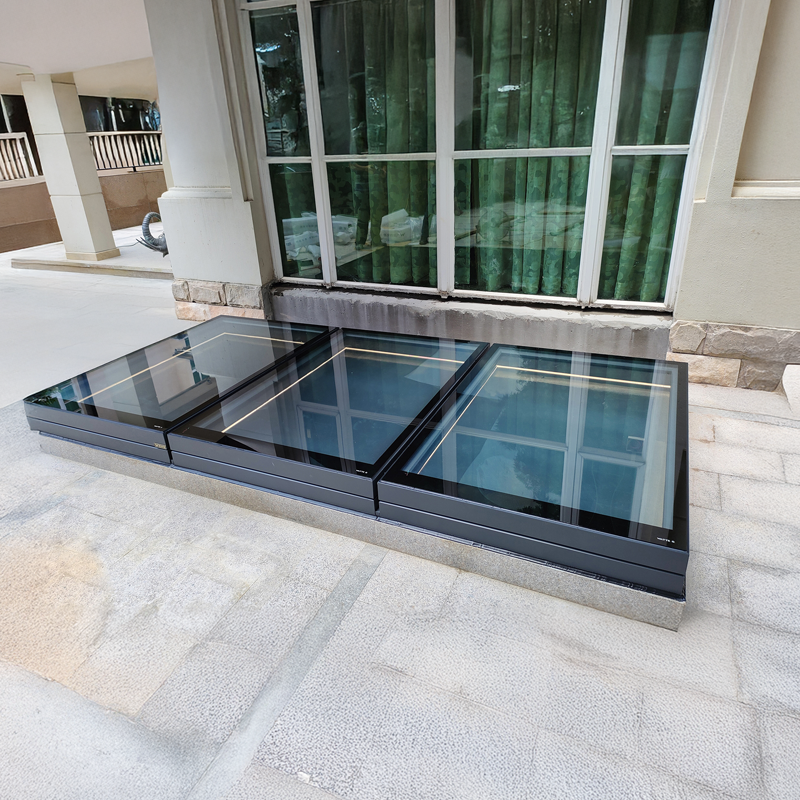

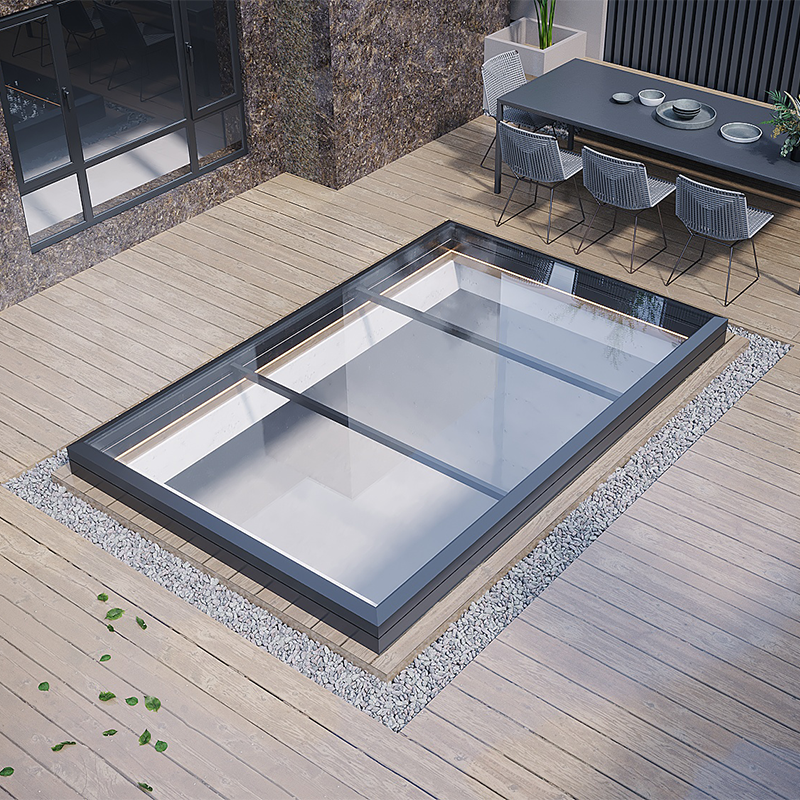

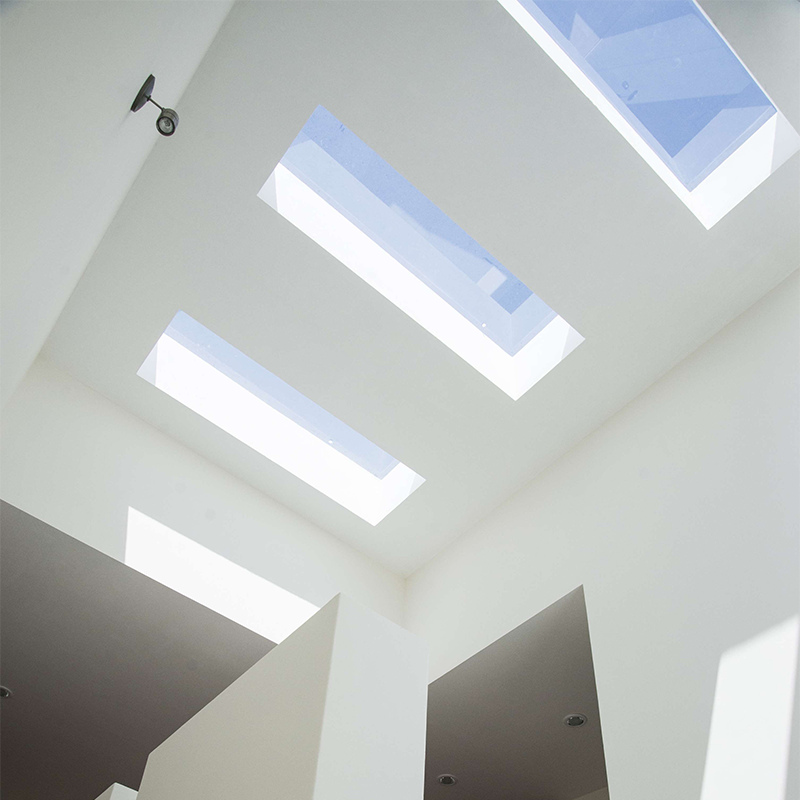

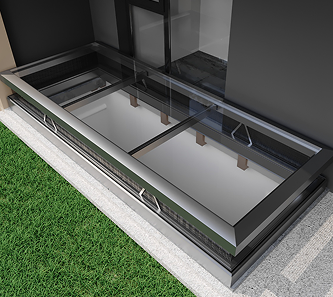

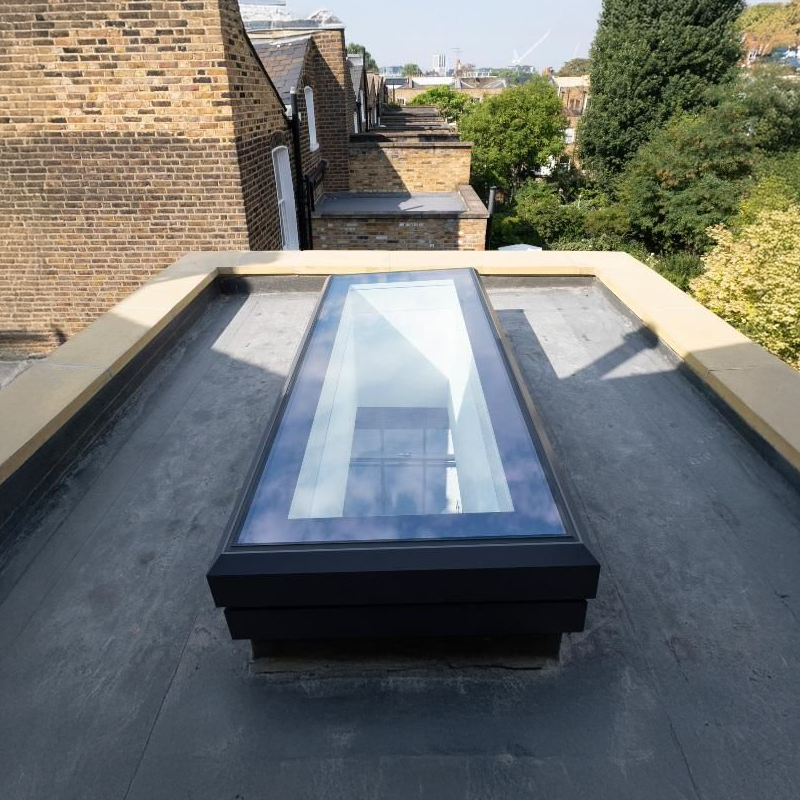

Rising Skylight WT-DR121
Designed & Manufactured by Archi Glass.
Our Skylights are designed to maximise natural light and illuminate internal spaces.
Combining outstanding technical perfonmance, minimalist design, high quality materials
Product Description
★ Quick assembly
Quick & Easy installation
★ Weather Tested
Industry lcading weather testing
★ Manufactured by Archi Glass
Deal directly with Archi Glass
★ Fully Customisable
Any size & specification
★ High Performance Glazing
Industry lcading weather testing

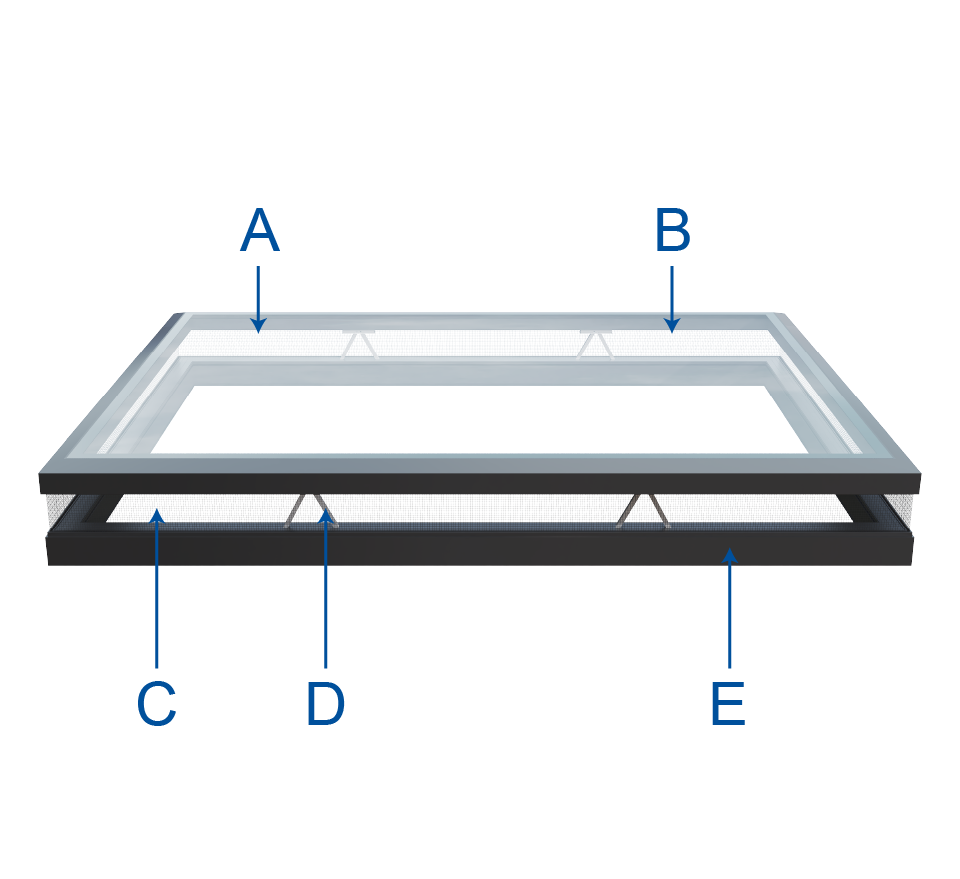

Detail Display
A : Optional glass
B : Movable frame
C : Stainless steelmosquito screen
D : Chain motor
E : Fixed panel
| Product information | |
|---|---|
| OPENING METHOD | Electric rise |
| SURFACE TREATMENT | Electrostatic powderspraying |
| PROFILE THICKNESS | The average thickness of the profiles is 3.0mm |
| CUSTOMIZATION RANGE | Maximum area of a single fan ≤36m² |
| Single fan width ≤4000mm、length ≤9000mm | |
Intelligent control
standard configuration
A：Standard remote control ，open and close the skylight
B：smartphomeIntegration，Skylight opening percentage
Information reminder
Optional
C：Combined multi-function control
- Can control up to five combinations
- Open and close the shylight
- Automatically closes the skylight when it senses rain
- carbon dioxide, temperature and humidity, etc. Detects 11 functions
Glazing
standard configuration
one：5mm HS Clear + 27mm AS + 5mm HS Clear
Optional
two：5mm HS Clear + 0.76mm PVB + 5mm HS Clear
three：5mm HS Clear + 22mmAS + 5mm HS Clear + 0.76mm PVB + 5mm HS Clear
